[SF-232-0-0-D-0] SF-232 IP-67 Montaj Ayaklı Contalı Kutu (Koyu Gri, Düz Kapak)+

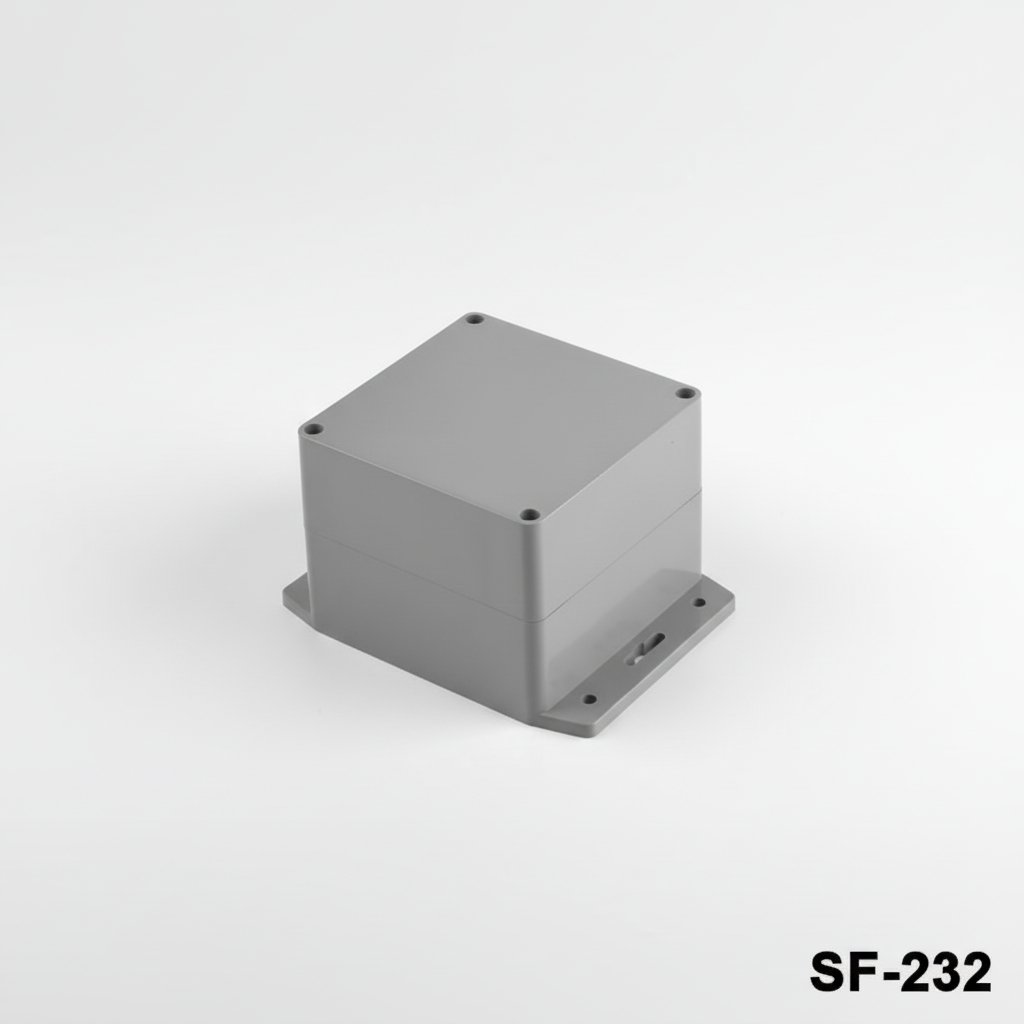

SF-232 IP-67 Flanged Heavy Duty Enclosures

[SF-232-0-0-D-0] 160 x 120 x 95 mm (6.3 x 4.72 x 3.74 in)

Flanges facilitate mounting on surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production with ASA material resistant to sun exposure is also possible.

Login or Register to see price

Color
- Dark Gray
Top Cover
- Flat Cover

This combination does not exist.

Barcode :

8698651323061

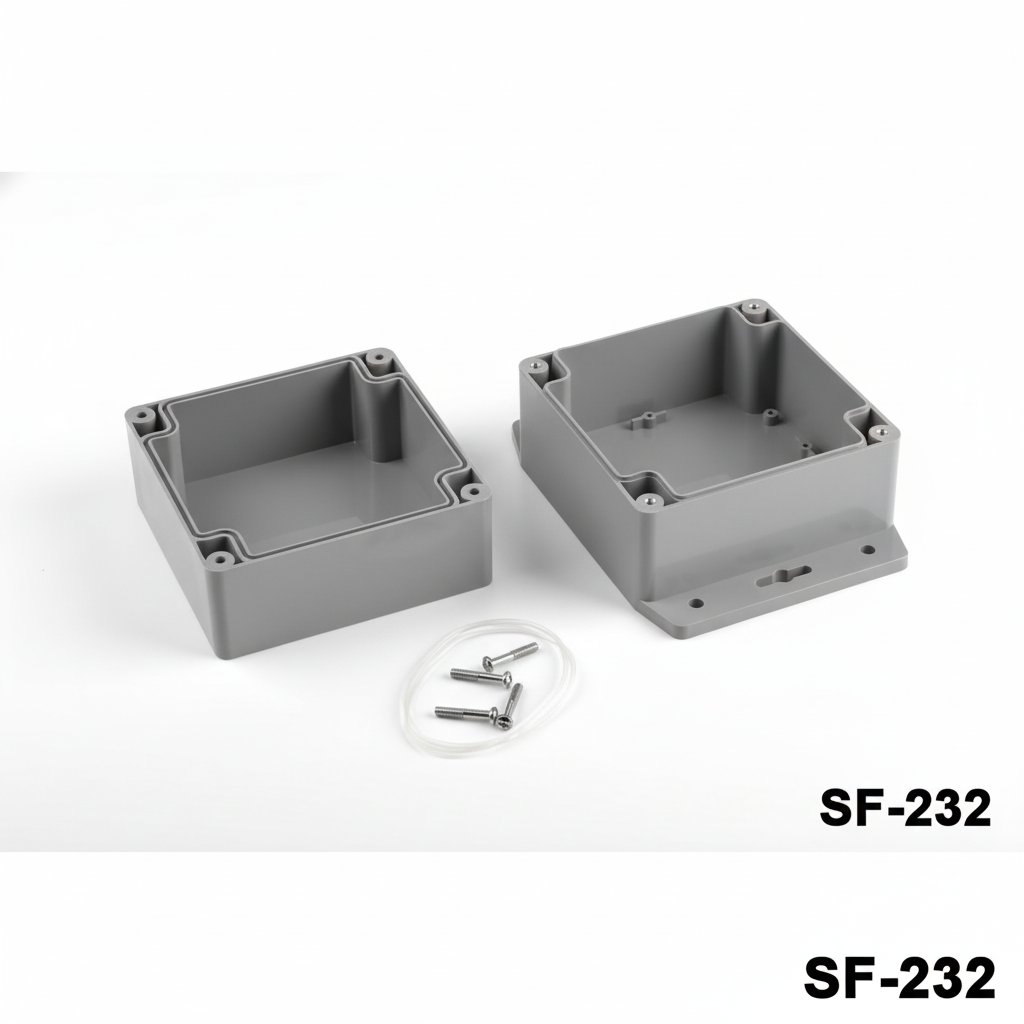

SF-232 is a flanged heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Flanges with screw holes provide you an easy assembly to the wall. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

E1	160
E2	112
E3	56
E4	137,5
B1 (mm)	120
B2 (mm)	112
B3 (mm)	98
B4 (mm)	80
D1 (mm)	95
D2 (mm)	81,5
D3 (mm)	50,5
D4 (mm)	45
Material	ABS
UL94	HB
A (mm)	160
B (mm)	120
C (mm)	95
Operating Temperature	-30° / +70°
IP Rate	IP67
Units per box	10
